PHONO JACKS AND PHONO JACK SETS
125
PJRAN1X1U03
PJRAS1X1S04
PJRAS1X2S02
PJRAN2X1U02
PJRAS2X1S01
PJRAN3X1U03
PJRAS4X2U01
PJRAS3X1S01
PJRAS1X3S01
PJRAS3X2S01
PJRAN3X1U02
PJRAS2X2S01
PJRAS1X3U01

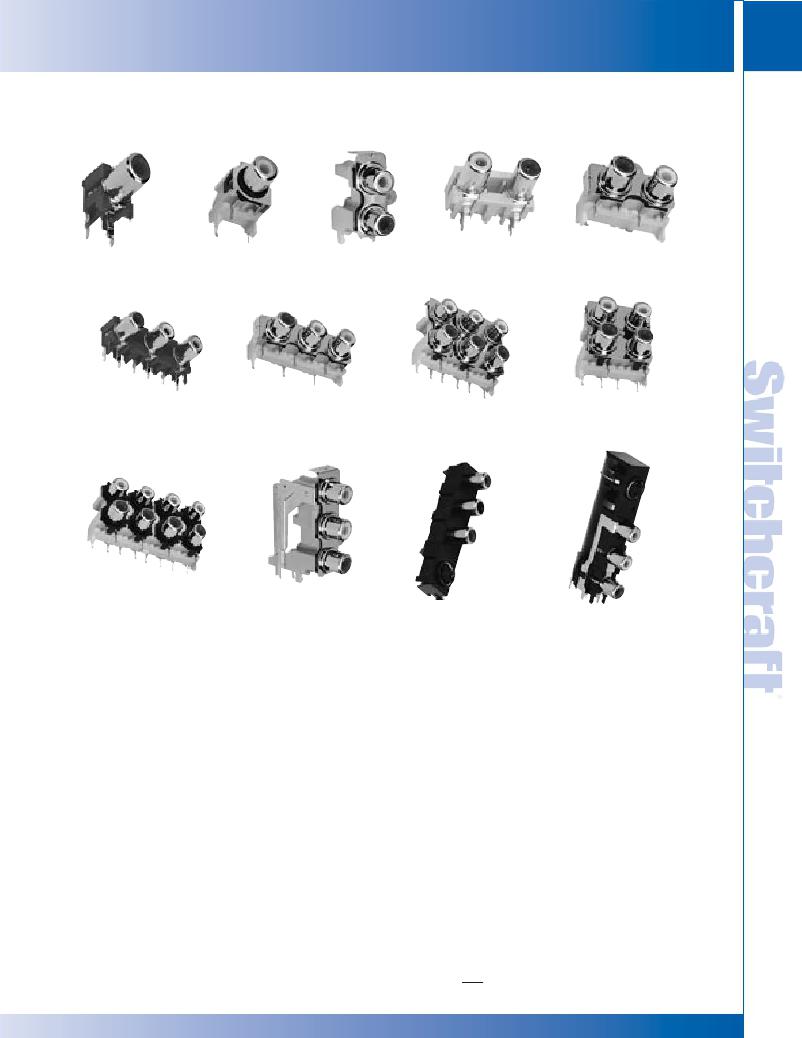

Switchcraft, the industry recognized leader in audio-video
connectivity, introduces the addition of a comprehensive line of
PCB Mount RCA Jacks and Jack Sets. Switchcraft’s newest
product family addresses the requirements of the most critical
?
?
?
?
Shielding and grounding
Bulkhead mounting screw
Colors
Plating
audio and audio/video applications. 1, 2, 3, 4, 6, and 8 position
jack sets are offered in a variety of color combinations with
numerous plating, grounding, shielding, mounting, and
justification options.
FEATURES AND BENEFITS
SPECIFICATIONS
ELECTRICAL
Temperature Range: -25 to +80°C
Rated Voltage: 34V DC or AC
Withstand Voltage: 500V
?
?
?
?
High temperature plastic housings and long life contacts
Snap fit PCB contacts and housings
Low profile footprint
Numerous options and configurations
Rated Current: 2A DC or AC
Dielectric Strength: 500V AC @ 1 minute
Contact Resistance: <30 mohms
Insertion Force*: <29.4N
APPLICATIONS
? Audio
? Video
? General Purpose Electronics
OPTIONS
? Right angle and straight PCB mount
? Horizontal and vertical justification
Extraction Force*: 1N to 29.4N
* Depends Upon Mating Plug
MATERIAL AND PLATINGS
Housing: UL94-HB Rated, ABS
Insulators: ABS
Ground Shell and Terminal: Nickel or Gold Plated, Copper Alloy
Terminals: Tin Plated Copper Alloy
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
